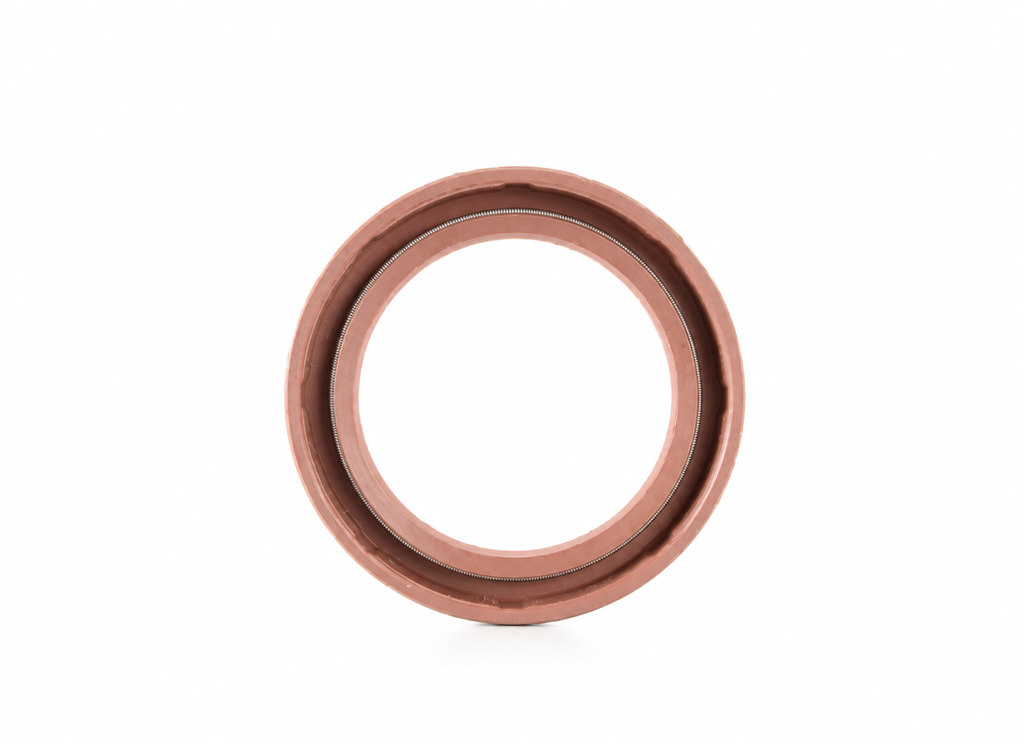

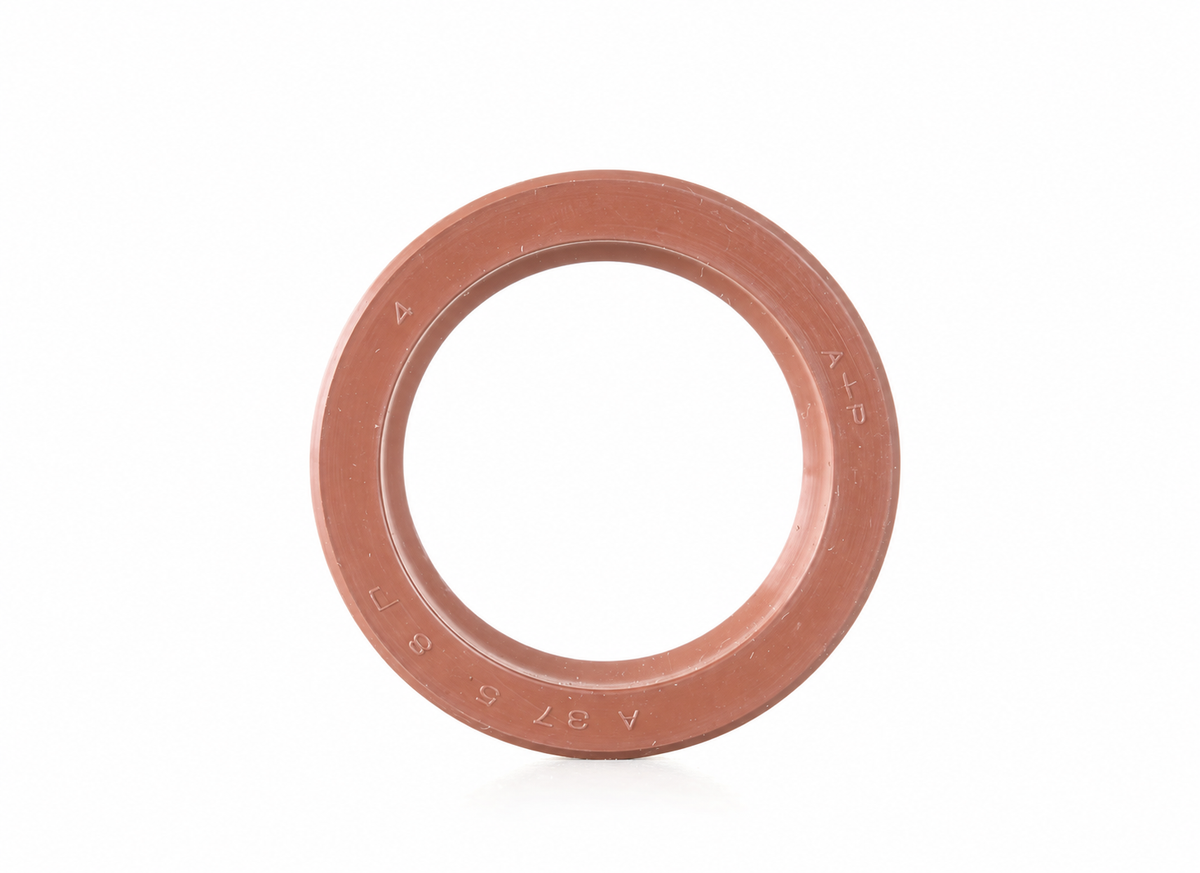

Oil Seal

Lamborghini replacement-part reference in the Iron Vault illustrated parts catalog.

• Part number: 008613702
• Vehicle family: Lamborghini Diablo
• EPC diagrams: 11.05.00, 15.01.00
• Diagram callouts: 11.05.00 #024, 15.01.00 #015
• Estimated item weight: 0.35 lb (high-confidence shipping estimate)

Alternate / Replacement

Replacement FKM/Viton option: 37 × 52 × 8 mm Type A radial oil seal in FPM/FKM (Viton-type fluoroelastomer).

• Iron Vault alternate SKU: ALT-008613702-37X52X8-FKM
• Alternate / cross-reference numbers: 37X52X8-A-FKM; Dichtomatik 67020483 / 49404538
• Supply choice: select OEM Lamborghini or Replacement FKM/Viton above

The replacement is source-verified for dimensions, material family and Type A/WA-compatible profile. It is an aftermarket equivalent, not a Lamborghini-branded OEM seal.

Ordering: Price or shipping details require staff confirmation before checkout.

Read the NIS & Special Order Terms before ordering.

Confirm fitment by exact part number, vehicle variant, and illustrated callout before ordering.
